HD50 Series

Portable Loading Ramps

The Adapt-A-Ramp’s HD50 Series Heavy Duty Loading Ramps have a wide range of applications making them ideal for loading heavy equipment or freight on and off trailers. The Adapt-A-Ramp’s HD50 series heavy duty Yard Ramps are designed to facilitate a smooth, efficient, and safe loading and unloading operation for your equipment. The solid structure of the HD50 series heavy duty loading ramps coupled with the 50,000-pound load capacity has made these the ramp of choice for many companies around the world.

Applications Include:

  • Equipment Rental Companies

  • Manufacturing Plants

  • Recycling Facilities

  • Lumber Yards

  • Millwright Operations

  • Heavy Industries

  • Rail Yards

  • Mining Operations

  • Fisheries

  • Other heavy duty loading and unloading applications

HD50 Series Loading Ramp Specifications:

The HD50 Series Portable Yard Ramps are available in several sizes and configurations offering widths available from the standard 90” to as wide as 16 feet for special applications.

HD50 Series Loading Ramp Design Features:

The Adapt-A-Ramp HD50 Series Portable Loading Ramps are equipped with several exclusive design features that will improve productivity and operational safety.

Load Capacity

Our HD50 Series Heavy Duty Portable Loading Ramps have a load capacity of 50,000 pounds and are designed to a 2 to 1 load factor of safety. The 50,000 pound load rating is based on 4 point loads similar to a vehicles foot print as opposed to distributing the load over the full area of the ramp.This realistic rating assures that any point on this yard ramp will support the full weight of 50,000 pounds.

Hinged Tail Plate

The hinged tail plate is 60” long and is located at the lower end of the ramp. This feature helps to improve ramp stability and creates a safer transition on and off the ramp.

4 Piece Hinged Lip Plate

The lip plate is attached with a full width seamless hinge and over laps onto the bed of the trailer allowing for a safe transition from the ramp to the truck. Ramps with a width of 102” or wider come equipped with Adapt-A-Ramps four piece hinged lip plate design. This design will enable you the flexibility of accessing flatbed trailers and dry van trailers and containers.

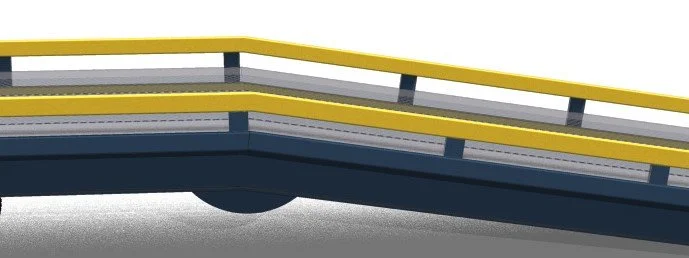

Side Guard Rails

The HD50 portable loading ramps are equipped with heavy duty side guard rails to help avoid driving off the side of the ramp. The standard guard rails are 8” high and are available in other height ranges.

Upper Level-Off Section

The HD50 mobile yard ramp features a 10 foot long upper level-off section that allows for your product to safely exit the truck prior to its descent on the ramp. This prevents possible damage caused by the freight hitting the top of the trailer.
