The HD50 Series is engineered for operations that move heavy equipment, industrial machinery, and oversized freight on a regular basis. Rated to 50,000 pounds with a 2:1 load factor of safety, these portable yard ramps deliver reliable, safe performance across a wide range of heavy duty loading applications.
The HD50 Series is built with engineering-first design features that deliver safety, structural integrity, and reliable performance under heavy daily use — every unit, every time.
All steel heavy duty construction: Every HD50 Series ramp is constructed from steel and undergoes a complete stress analysis to ensure structural integrity and superior operational safety. All ramps exceed a 2:1 load rating safety factor — minimum.
Heavy duty side guard rails: Built-in side guard rails run the full length of the ramp to prevent equipment from driving off the edge. The HD50 Series comes standard with guard rails from 8″ to 18″+ high depending on the equipment being loaded. Custom heights available.
Anti-slip deck surface: The full length of the ramp deck features an anti-slip surface, providing superior traction for safer operation in all conditions.
Dual speed leveling jacks: Dual speed leveling jacks allow operators to quickly and precisely set the ramp to trailer or dock height. Fully supported and strategically positioned to maximize ramp stability and operator safety.

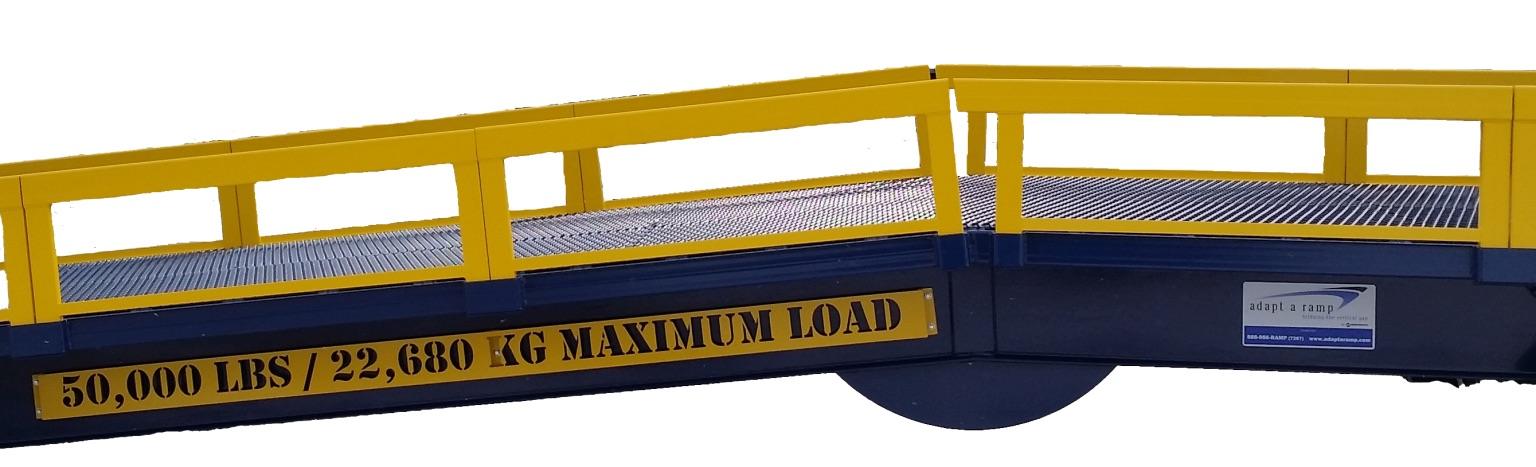

Built-in side guard rails run the full length of the ramp to prevent equipment from driving off the edge during loading and unloading. The HD50 Series comes standard with guard rails from 8″ to 18″+ high depending on the type of equipment being loaded. Custom heights available to suit your application.

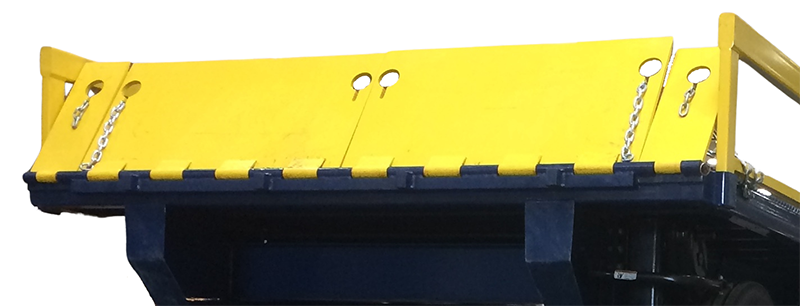

The hinged lip plate is attached with a full-width seamless hinge and overlaps onto the trailer bed for a smooth, safe transition between the ramp and the truck. On ramps 102″ wide and over, the HD50 Series comes equipped with Adapt-A-Ramp’s four-piece hinged lip plate — giving you the flexibility to work with flatbed trailers, dry van trailers, and shipping containers.

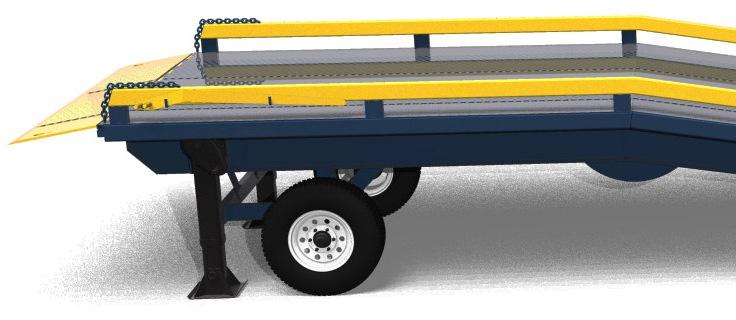

The 10-foot upper level-off section provides a fully horizontal platform at the top of the ramp before the descent to ground level. This allows lift truck operators to exit the trailer in a stable, flat position — keeping the load clear of the trailer roof and reducing tipping risk before approaching the incline.
